Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001, CE, ROHS

Model Number: HW-2022090601

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $1.00/pieces 10-99 pieces

Packaging Details: First put in a polybag per 10 pcs usually, then packed in a big carton.

Get Best Price
Highlight:

Overlay Metal Dome Membrane Switch

,

IP67 Metal Dome Membrane Switch

,

Overlay LED Backlight Membrane Switch

Type:
Membrane Keypad
Application:
Medical Equipment
Keypad Button Material:
PET
Color:
Pantone Or RAL
Overlay:
PC Or PET Material
Waterproof Grade:
IP67
Key:
Embossed, Flat, Metal, Silicone, Rubber, Gum
Surface:
Glossy Or Matte
Back Adhesive:
3M
Printing:
Screen Printing, Semi-Auto Matic Printing, Automatic Printing
Connector Tail:
ZIF, Female Connector, Male Connector
Service Life:
> 1 Million Times
Type:
Membrane Keypad
Application:
Medical Equipment
Keypad Button Material:
PET
Color:
Pantone Or RAL
Overlay:
PC Or PET Material
Waterproof Grade:
IP67
Key:
Embossed, Flat, Metal, Silicone, Rubber, Gum
Surface:
Glossy Or Matte
Back Adhesive:
3M
Printing:
Screen Printing, Semi-Auto Matic Printing, Automatic Printing
Connector Tail:
ZIF, Female Connector, Male Connector
Service Life:
> 1 Million Times
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 0

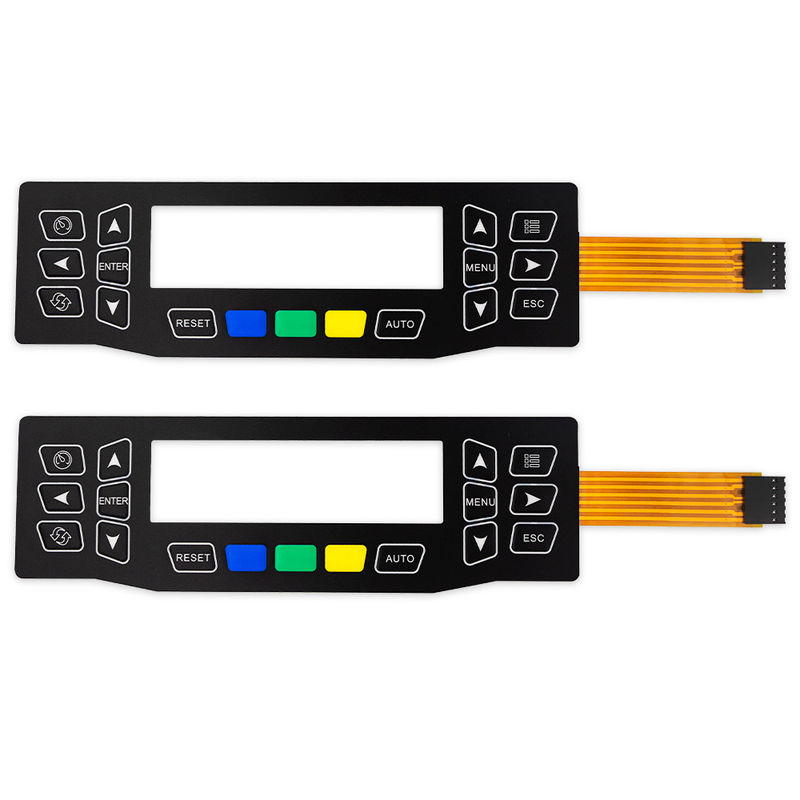

Custom PET PC Overlay Metal Dome On Off Membrane Keypad Keyboard With LED Backlight

Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 1
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 2
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 3
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 4
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 5
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 6
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 7
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 8
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 9
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 10
Technical Paramenters
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 11
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation

± 0.15mm, clear code looks bad ≤ 0.1mm edges

Chromatic Deviation

± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 12
Electronic Communication
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 13
Electronic Measurement
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 14
Industrial Control
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 15
Medical Equipment
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 16
Automotive Industry
Overlay Metal Dome Membrane Switch Glossy IP67 With LED Backlight 17
Household
