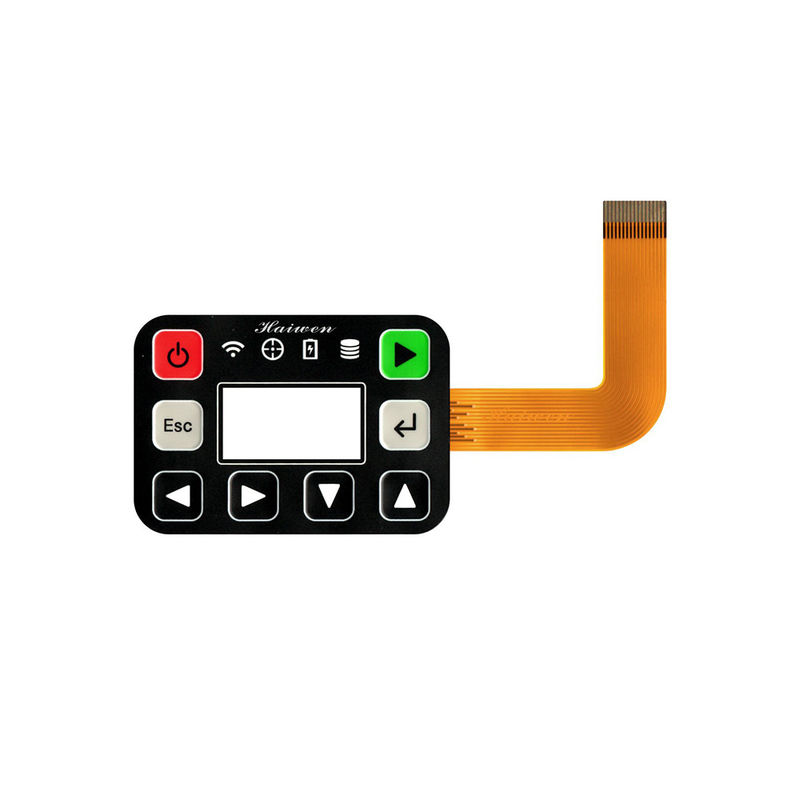

Silver Paste Membrane Keypad Dome Switch Excellent Wearability With LED

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001

Model Number: HW-69821011

Payment & Shipping Terms

Price: $1.00 - $5.00/pieces

Packaging Details: According to customer requirement, the use of plastic bags and carton packaging

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Highlight:

Membrane Keypad Dome Switch

,

Silver Paste Keypad Dome Switch

,

Silver Paste Membrane Dome Switch

Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
F150 PET
Product:
18 Years Experience
Material:
PET/ 3M467/ Silver Paste
Printing:
Screen Printing
Key:
2)embossed Or Flat
Finish:
Matte/Glossy
Adhesive:
3M467/3M468
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
LED:
YES/NO
Pitch:
2.54mm
Port:
Shenzhen
Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
F150 PET
Product:
18 Years Experience
Material:
PET/ 3M467/ Silver Paste
Printing:
Screen Printing
Key:
2)embossed Or Flat
Finish:
Matte/Glossy
Adhesive:
3M467/3M468
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
LED:
YES/NO
Pitch:
2.54mm
Port:
Shenzhen
Silver Paste Membrane Keypad Dome Switch Excellent Wearability With LED
Waterproof Push Button Membrane Keypad With LED
Product Description

        Membrane keypad flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.

       Membrane keypad has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.

        PVC membrane panel is stable in acid, alkali and salts. The advantages are excellent wearability, burning resistance, noise elimination, shock absorption and good electrical insulation. The panel of Haiwen can be customized based on customer’s design such as button icons, colors etc. Selecting transparent PVC to screen print the overlay appears elegant and colorful. Buttons are embossed with tactile. The articles are widely used for control keypads for home applications. The rear adhesive adopt 3M9448.

               The main technical parameters of Haiwen membrane keypad
(1) Electrical Properties
1, operating voltage:  ≤ 50VDC
2, working current:  ≤ 100mA
3 Contact resistance:  0.5 ~ 5Ω
4 Insulation resistance:  ≥ 100MΩ (100VDC)
5, substrate voltage:  2kDVC
6, spring time:  ≤ 6ms
7, loop resistance:  50Ω
8, insulation ink voltage:  100VDC

(2) Mechanical Properties
1, reliability, service life: > 1 million times
2, closed displacement:  0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm
3, health standard for power:  280g Power
4, Silver migration:  In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
5, Silver online no oxidation, no impurities
6, Silver width  ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width
7, pin spacing standard  2.54mm
8, lead anti-curvature, with d  10mm steel rod line pressure roller 80 constantly.

(3) environmental performance
1, operating temperature:  -40 ℃ ~ +80 ℃
2, storage temperature:  -40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3, atmospheric pressure:  86 ~ 106kDa

(4) print index
1, print size deviation  ± 0.15mm, clear code looks bad ≤ 0.1mm edges
2, chromatic deviation  ± 0.11mm/100mm, insulated cover all the Silver Line Ink
3, no ink dispersion, writing non-defective
4, chromatic aberration is not more than two
5, may have creases, paint stripping
6, transparent windows transparent clean, uniform color, not a scratch, and impurity




technical parameter

1.  Electrical Properties:



1, operating voltage:  ≤ 50VDC
2, working current:  ≤ 100mA
3 Contact resistance:  0.5 ~ 5Ω
4 Insulation resistance:  ≥ 100MΩ (100VDC)
5, substrate voltage:  2kDVC
6, spring time:  ≤ 6ms
7, loop resistance:  50Ω, 100Ω, 150Ω third gear, or the user needs to determine
8, insulation ink voltage:  100VDC



 2.  Mechanical Properties :



1, reliability, service life: > 1 million times
2, closed displacement:  0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm
3, health standard for power:  280g Power
4, Silver migration:  In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
5, Silver online no oxidation, no impurities
6, Silver width  ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width
7, pin spacing standard  2.54 2.50 1.27 1.25mm
8, lead anti-curvature, with d  10mm steel rod line pressure roller 80 constantly.



 3. environmental performance :



1, operating temperature:  -40 ℃ ~ +80 ℃
2, storage temperature:  -40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3, atmospheric pressure:  86 ~ 106kDa
