IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch

Product Details

Place of Origin: China

Brand Name: Haiwen

Certification: ISO9001/SGS

Model Number: HW-91206001

Payment & Shipping Terms

Price: $2.00 - $5.00/pieces

Packaging Details: According to customer requirement, the use of plastic bags and carton packaging

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Highlight:

IP67 Flexible Membrane Switch

,

LED Flexible Membrane Switch

,

IP67 Metal Dome Membrane Switch

Application:
Telecommunication Equipment
Keypad Button Material:
F200 PET
Product:
18 Years Experience
Material:
FPC/ 3M9495LE/ Silver Paste
Printing:
Screen Printing
Port:
Shenzhen
Application:
Telecommunication Equipment
Keypad Button Material:
F200 PET
Product:
18 Years Experience
Material:
FPC/ 3M9495LE/ Silver Paste
Printing:
Screen Printing
Port:
Shenzhen
IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch

IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 0

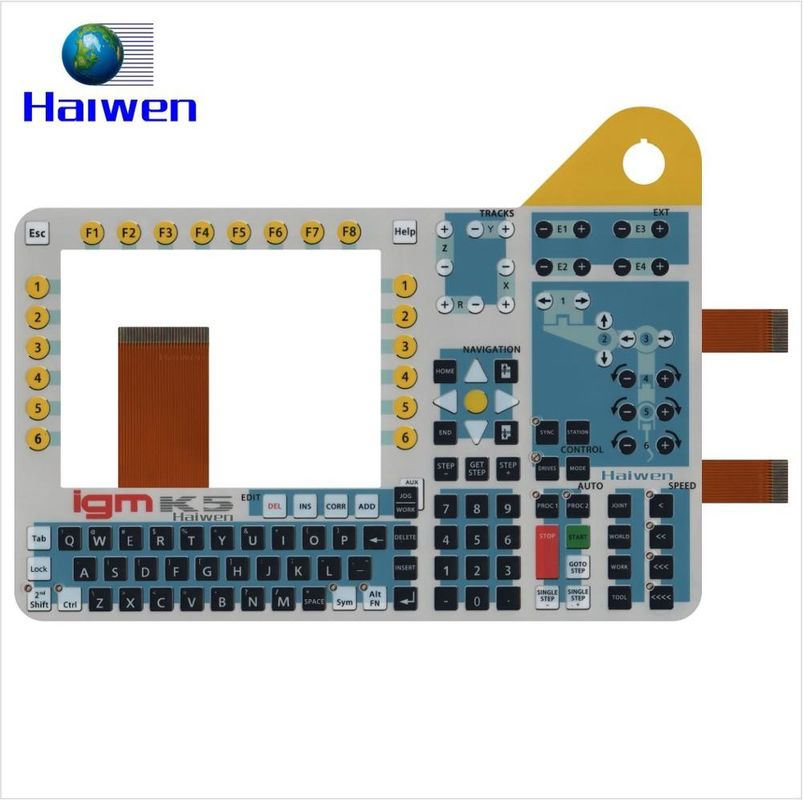

Custom High Quality IP67 Waterproof FPC Membrane Keypad With LED And Metal Dome



       Membrane keypad flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.

       Membrane keypad has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.

        Metal domes added to the membrane keypad provide the upper circuit layer. That contributes the keys to visual, audible, and tactile feedback. The switch can performance well in high temperature environment. The product are mainly used as control keypad for medical equipment. Also, keypad of Haiwen can be customized based on customer’s design such as button icons, colors etc. Selecting Autotype F150 matte PET to screen print the overlay appears elegant and colorful. The circuits are made of silver paste, so that it can be low resistance and function well. The rear adhesive is 3M 468.

               The main technical parameters of Haiwen membrane switch
(1) Electrical Properties
1, operating voltage:  ≤ 50VDC
2, working current:  ≤ 100mA
3 Contact resistance:  0.5 ~ 5Ω
4 Insulation resistance:  ≥ 100MΩ (100VDC)
5, substrate voltage:  2kDVC
6, spring time:  ≤ 6ms
7, loop resistance:  30Ω
8, insulation ink voltage:  100VDC

(2) Mechanical Properties
1, reliability, service life: > 1 million times
2, closed displacement:

0.1 ~ 0.4mm (no touch-type)

0.4 ~ 1.0mm

3, health standard for power:  280g Power
4, Silver migration:

In 55 ℃, humidity 90%, 56

hours later, the second-line between the 10MΩ/50VDC

5, Silver online no oxidation, no impurities
6, Silver width

 ≥ 0.3mm, the smallest interval of

0.3mm, line edges <1 / 3, the

line gap of <1 / 4 width

7, pin spacing standard  2.54mm
8, lead anti-curvature, with d

10mm steel rod line pressure roller

80 constantly.


(3) environmental performance
1, operating temperature:  -40 ℃ ~ +80 ℃
2, storage temperature:  -40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3, atmospheric pressure:  86 ~ 106kDa

(4) print index
1, print size deviation

± 0.15mm, clear code looks

bad ≤ 0.1mm edges

2, chromatic deviation

± 0.11mm/100mm, insulated cover all

 the Silver Line Ink

3, no ink dispersion, writing non-defective
4, chromatic aberration is not more than two
5, may have creases, paint stripping

6, transparent windows transparent clean, uniform color, not a scratch, and impurity


IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 1
IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 2
IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 3
IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 4
IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 5

IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 6
IP67 Flexible Membrane Switch Keypad Metal Dome Membrane Switch 7
