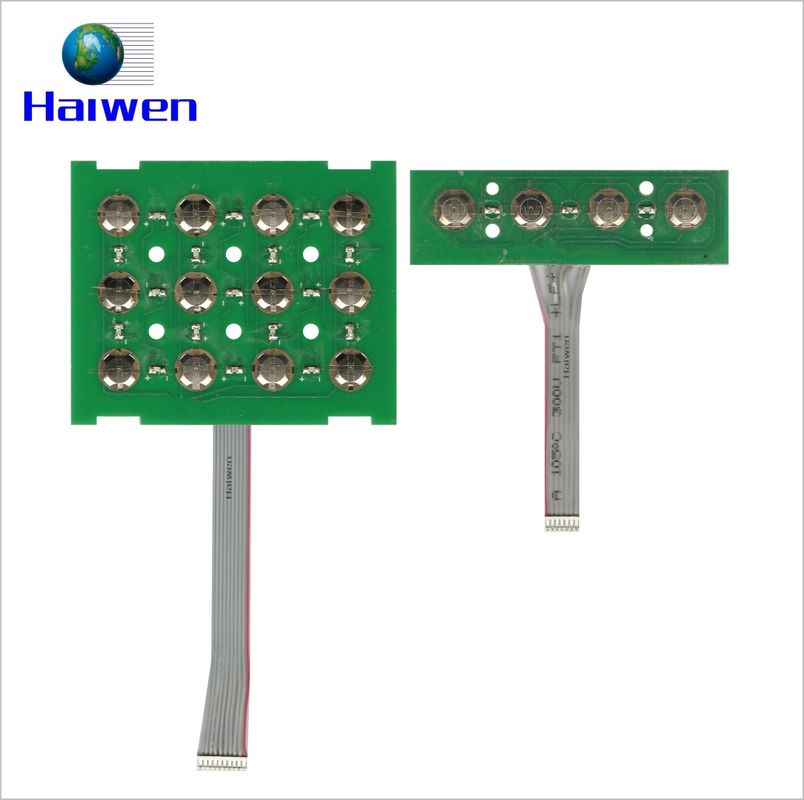

Screen Printing PCB Membrane Switch Adhesive Material Custom

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001/CE

Model Number: HW-16012303

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $1.00/pieces 10-499 pieces

Packaging Details: According to customer requirement, the use of plastic bags and carton packaging

Supply Ability: 100000 Piece/Pieces per Month PCB keyboard

Get Best Price
Highlight:

Screen Printing PCB Membrane Switch

,

Adhesive PCB Membrane Switch

Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
PCB
Product:
20 Years Experience
Printing:
Screen Printing
Material:
PET/Adhesive
Color:
Pantone/RAL
Overlay:
PET/PC/PCB
Circuit:
Printed Silver Conductive Inks/FPC
Adhesive:
3M
Sample:
5pcs
Surface:
Glossy/Matte
Port:
Shenzhen
Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
PCB
Product:
20 Years Experience
Printing:
Screen Printing
Material:
PET/Adhesive
Color:
Pantone/RAL
Overlay:
PET/PC/PCB
Circuit:
Printed Silver Conductive Inks/FPC
Adhesive:
3M
Sample:
5pcs
Surface:
Glossy/Matte
Port:
Shenzhen
Screen Printing PCB Membrane Switch Adhesive Material Custom
Screen Printing PCB Membrane Switch Adhesive Material Custom 0
Screen Printing PCB Membrane Switch Cheap Custom PCB Keyboard
Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
Screen Printing PCB Membrane Switch Adhesive Material Custom 1
Screen Printing PCB Membrane Switch Adhesive Material Custom 2
Screen Printing PCB Membrane Switch Adhesive Material Custom 3
Screen Printing PCB Membrane Switch Adhesive Material Custom 4
Screen Printing PCB Membrane Switch Adhesive Material Custom 5
Screen Printing PCB Membrane Switch Adhesive Material Custom 6
Screen Printing PCB Membrane Switch Adhesive Material Custom 7
Technical Paramenters
Screen Printing PCB Membrane Switch Adhesive Material Custom 8
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation
