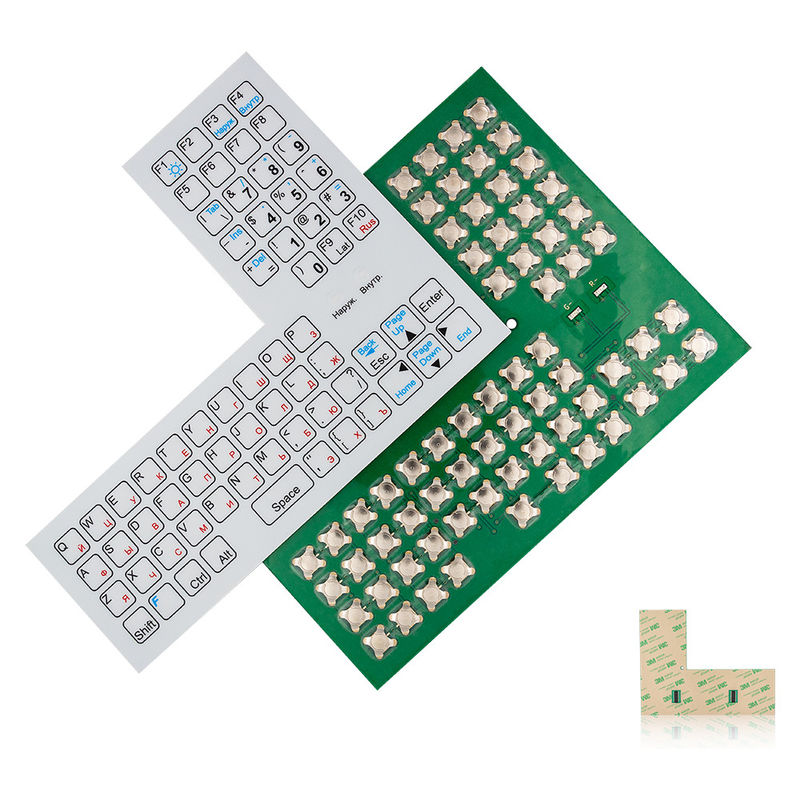

Custom Rigid Circuit PCB Membrane Switch Automatic Printing

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Model Number: HW2365042

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $0.90/pieces 10-999 pieces

Packaging Details: outer packaging: carton
inner packaging: polybag

Supply Ability: 1000000 Piece/Pieces per Month membrane switch

Get Best Price
Highlight:

Rigid Circuit PCB Membrane Switch

,

Automatic Printing PCB Membrane Switch

,

Automatic Printing Custom Membrane Switch

Type:
Plastic Keypad
Application:
Telecommunication Equipment
Keypad Button Material:
PET/PVC
Material:
PET/PC
Color:
PMS/ Pantone & RAL
Certificate:
ISO9001, CE , ROHS
Product Type:
Membrane Switch
Button:
Embossing Or Flat
Key Life:
≥1 Million Times
Stock Temperature:
-40°c~+80°c
QC:
100% Testing Before Shipment
Surface:
Glossy Surface Or Matte Surface
Standard Tolerances::
+/- 0.10inch(+/-0.25mm)
Port:
Shenzhen
Type:
Plastic Keypad
Application:
Telecommunication Equipment
Keypad Button Material:
PET/PVC
Material:
PET/PC
Color:
PMS/ Pantone & RAL
Certificate:
ISO9001, CE , ROHS
Product Type:
Membrane Switch
Button:
Embossing Or Flat
Key Life:
≥1 Million Times
Stock Temperature:
-40°c~+80°c
QC:
100% Testing Before Shipment
Surface:
Glossy Surface Or Matte Surface
Standard Tolerances::
+/- 0.10inch(+/-0.25mm)
Port:
Shenzhen
Custom Rigid Circuit PCB Membrane Switch Automatic Printing
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 0Custom Rigid Circuit PCB Membrane Switch Keypads Keyboards

Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 1
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 2
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 3
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 4
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 5
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 6
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 7
Technical Paramenters
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 8
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation

± 0.15mm, clear code looks bad ≤ 0.1mm edges

Chromatic Deviation

± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 9
Electronic Communication
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 10
Electronic Measurement
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 11
Industrial Control
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 12
Medical Equipment
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 13
Automotive Industry
Custom Rigid Circuit PCB Membrane Switch Automatic Printing 14
Household
