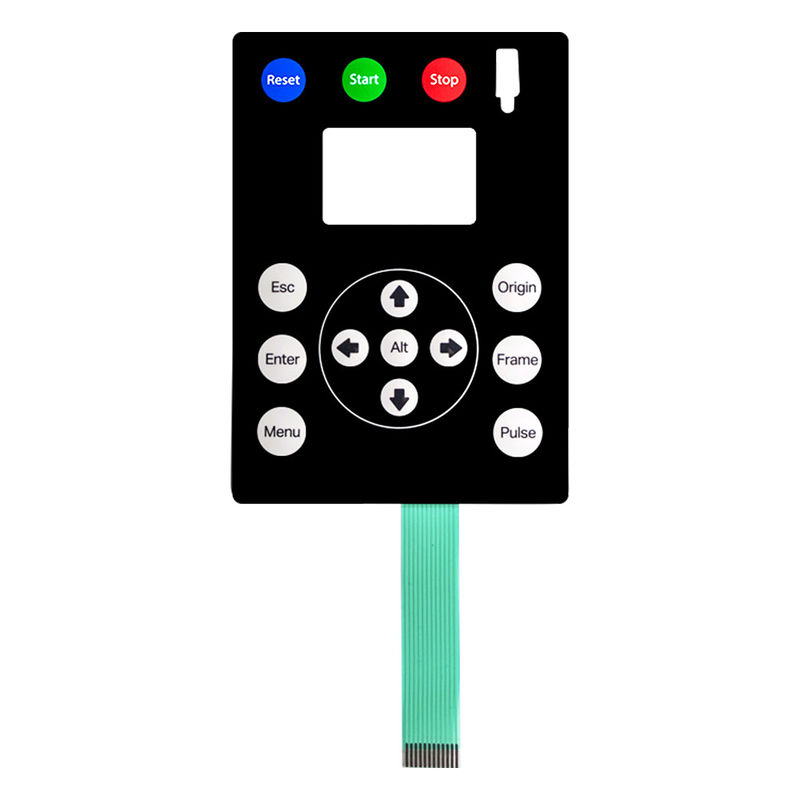

Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard

Product Details

Certification: ISO9001, CE, ROHS

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $0.90/pieces 10-99 pieces

Packaging Details: First put in a polybag per 10 pcs usually, then packed in a big carton.

Get Best Price
Highlight:
Type:
Graphic
Color:
Pantone Or RAL
FPC Membrane Switch:
PC Or PET Material
Waterproof Grade:
IP67
Key:
Embossed, Flat, Metal, Silicone, Rubber, Gum
Surface:
Glossy Or Matte
Back Adhesive:
3M
Printing:
Screen Printing, Semi-Auto Matic Printing, Automatic Printing
Connector Tail:
ZIF, Female Connector, Male Connector
Service Life:
> 1 Million Times
Type:
Graphic
Color:
Pantone Or RAL
FPC Membrane Switch:
PC Or PET Material
Waterproof Grade:
IP67
Key:
Embossed, Flat, Metal, Silicone, Rubber, Gum
Surface:
Glossy Or Matte
Back Adhesive:
3M
Printing:
Screen Printing, Semi-Auto Matic Printing, Automatic Printing
Connector Tail:
ZIF, Female Connector, Male Connector
Service Life:
> 1 Million Times
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 0
Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes
Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001、RoHS、CE、SGS
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 1
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 2
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 3
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 4
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 5
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 6
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 7
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 8
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 9
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 10
Technical Paramenters
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 11
Electrical Properties
Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties
Reliability, Service life
> 1 million times
Closed Displacement
0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)
Health Standard For Power
 280g Power
Silver Migration
In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
Silver Online No Oxidation, No Impurities
Silver Width
≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width
Pin Spacing Standard
1.00mm
Lead Aanti-Curvature
10mm steel rod line pressure roller 80 constantly.
Environmental Performance
Operating Temperature
 -40 ℃ ~ +80 ℃
Storage Temperature
-40 ℃ ~ +85 ℃ temperature of 95% ± 5%
Atmospheric Pressure
86 ~ 106KPa
Print Index
Print Size Deviation
± 0.15mm, clear code looks bad ≤ 0.1mm edges
Chromatic Deviation
± 0.11mm/100mm, insulated cover all the Silver Line Ink
Application
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 12
Electronic Communication
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 13
Electronic Measurement
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 14
Industrial Control
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 15
Medical Equipment
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 16
Automotive Industry
Fast Delivery Outdoors Graphic Overlay Membrane Keypad Switch Panel Keypad Keyboard 17
Household
