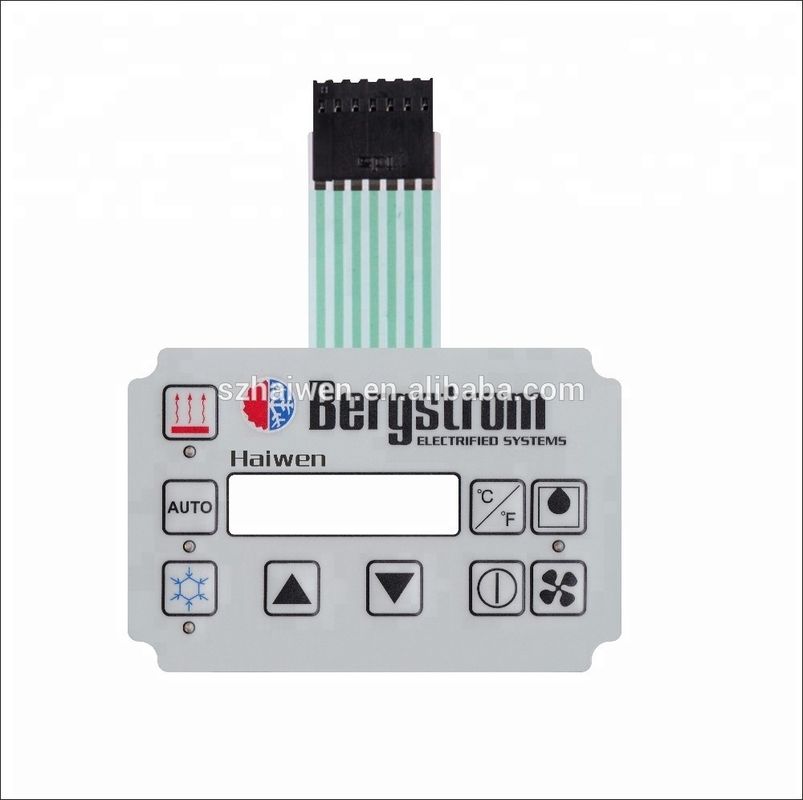

CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: CE, ISO9001

Model Number: HW05161701F

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $1.00/pieces 5-499 pieces

Packaging Details: outer packaging: carton
inner packaging: polybag

Supply Ability: 1000000 Piece/Pieces per Month membrane switch keypad

Get Best Price
Highlight:

CE PET Circuit Membrane Switch

,

Industrial PET Circuit Membrane Switch

,

CE Membrane Keypad Switch

Whether The Smart:
Yes
Protection Level:
IP65
Max. Current:
100mA
Max. Voltage:
50VDC
LED:
Yes
Material:
PET, PC, Acrylic, Glass
Color:
PMS/ Pantone & RAL
Certificate:
ISO9001
Product Type:
Membrane Switch
Button:
Embossing
Service Life:
≥1 Million Times
Stock Temperature:
-40°c~+80°c
QC:
100% Testing Before Shipment
Back Adhesive:
3m Adhesive
Connector Tail:
ZIF, Female Connector, Male Connector
Port:
Shenzhen
Whether The Smart:
Yes
Protection Level:
IP65
Max. Current:
100mA
Max. Voltage:
50VDC
LED:
Yes
Material:
PET, PC, Acrylic, Glass
Color:
PMS/ Pantone & RAL
Certificate:
ISO9001
Product Type:
Membrane Switch
Button:
Embossing
Service Life:
≥1 Million Times
Stock Temperature:
-40°c~+80°c
QC:
100% Testing Before Shipment
Back Adhesive:
3m Adhesive
Connector Tail:
ZIF, Female Connector, Male Connector
Port:
Shenzhen
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 0
2.54MM Female Connector Membrane Keypad Switch For Industrial

Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 1
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 2
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 3
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 4
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 5
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 6
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 7
Technical Paramenters
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 8
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation

± 0.15mm, clear code looks bad ≤ 0.1mm edges

Chromatic Deviation

± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 9
Electronic Communication
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 10
Electronic Measurement
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 11
Industrial Control
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 12
Medical Equipment
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 13
Automotive Industry
CE PET Circuit Membrane Switch Keypad Poly Domes For Industrial 14
Household
