Silicone Rubber Flat Digital Membrane Switch With Led Backlight

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001,CE,ROHS,TUV

Model Number: HW-2022062801

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $0.90/pieces 10-99 pieces

Packaging Details: According to customer requirement, the use of plastic bags and carton packaging

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Highlight:

Led Backlight Digital Membrane Switch

,

Silicone Rubber Flat Digital Membrane Switch

,

Led Backlight Silicone Membrane Switch

Type:
Membrane Keyboard
Application:
Telecommunication Equipment
Keypad Button Material:
F200 PET
Cross Reference:
PET/PC
Color:
Pantone Or RAL
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
FPC Membrane Switch:
PC Or PET Material
LED:
Embedded
Design:
Custom Size, Color, Button Shape, Cable Length
Back Adhesive:
3M
Circuit:
Flexible FPC
Button:
Embossed, Flat, Metal, Silicone, Rubber, Gum
Port:
Shenzhen
Type:
Membrane Keyboard
Application:
Telecommunication Equipment
Keypad Button Material:
F200 PET
Cross Reference:
PET/PC
Color:
Pantone Or RAL
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
FPC Membrane Switch:
PC Or PET Material
LED:
Embedded
Design:
Custom Size, Color, Button Shape, Cable Length
Back Adhesive:
3M
Circuit:
Flexible FPC
Button:
Embossed, Flat, Metal, Silicone, Rubber, Gum
Port:
Shenzhen
Silicone Rubber Flat Digital Membrane Switch With Led Backlight
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 0

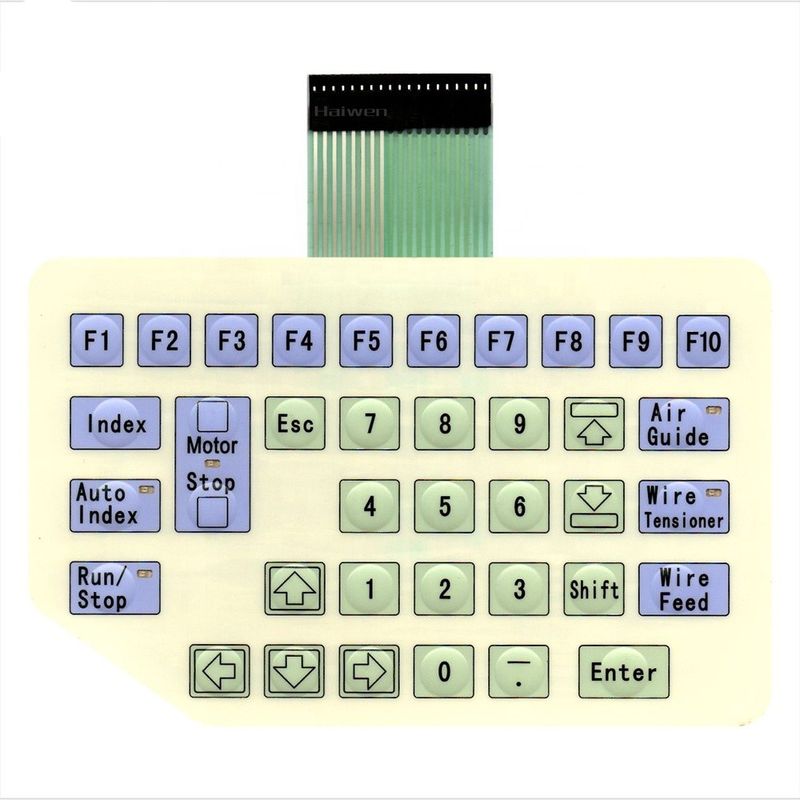

Silicone Rubber Flat Digital Membrane Pressure Switch With Led Backlight Membrane Switch Keypad Panel
Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 1
Technical Paramenters
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 2
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation

± 0.15mm, clear code looks bad ≤ 0.1mm edges

Chromatic Deviation

± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 3
Electronic Communication
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 4
Electronic Measurement
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 5
Industrial Control
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 6
Medical Equipment
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 7
Automotive Industry
Silicone Rubber Flat Digital Membrane Switch With Led Backlight 8
Household
