Illuminated LED Membrane Switch Non Tactile For Electromagnetic Oven

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: CE , ROHS

Model Number: c-88

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $3.00/pieces 10-99 pieces

Packaging Details: paper carton (outer) and plastic bubble bag (inner)

Supply Ability: 150000 Piece/Pieces per Month

Get Best Price
Highlight:

Non Tactile LED Membrane Switch

,

Non Tactile Illuminated Membrane Switch

,

Illuminated LED Membrane Switch

Whether The Smart:
Yes
Protection Level:
First Grade
Max. Current:
100mA,1W
Max. Voltage:
35V(DC)
LED:
Yes, YES/NO
Material:
PET/PC
Finish:
Matte/Glossy
Adhesive:
3M467/3M468
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
Pin:
Need To Check The Circuit Diagram
Pitch:
2.54mm
Cable Length:
As Requirement
Connector:
Female /Male/DoPont Connector
Key:
Embossed Or Flat
Port:
Shenzhen
Whether The Smart:
Yes
Protection Level:
First Grade
Max. Current:
100mA,1W
Max. Voltage:
35V(DC)
LED:
Yes, YES/NO
Material:
PET/PC
Finish:
Matte/Glossy
Adhesive:
3M467/3M468
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
Pin:
Need To Check The Circuit Diagram
Pitch:
2.54mm
Cable Length:
As Requirement
Connector:
Female /Male/DoPont Connector
Key:
Embossed Or Flat
Port:
Shenzhen

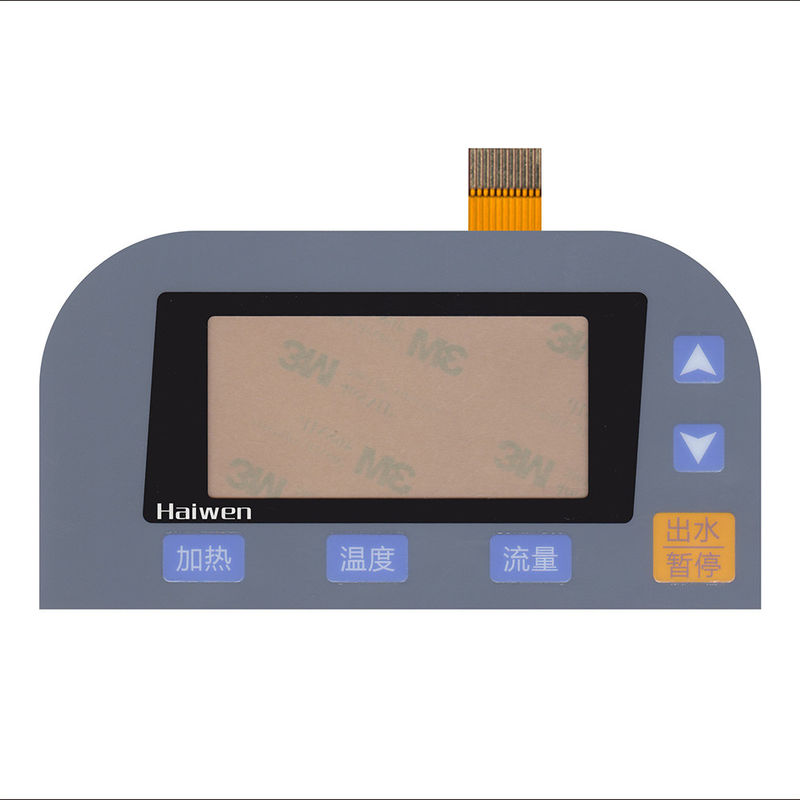

Illuminated LED Membrane Switch Non Tactile For Electromagnetic Oven

     Illuminated Membrane Switch For Electromagnetic Oven





   With the sidelight LED embedded in the circuit, light can go through to meet customer requirement in the lighting area. The product is mainly use for industrial controller as function keypad. Also, keypad of Haiwen can be customized based on customer’s design such as button icons, colors etc. Selecting Autotype F150 matte PET to make the overlay appears elegant and colorful. The circuits are printed with Acheson ED-820B silver paste, so that it can be low resistance and function well. The back rear adhesive is 3M9448HK.



1. membrane keyboard switch

 Overlay Materials: The most commonly used base materials are polyester and polycarbonate.

 Rear Adhesive: 3M 467MP, 3M 468MP, etc.

 Standard Tolerances: +/-.010 inch.

 Matching color: Pantone and RAL color matching system.

 Tail, pin and circuit layout: subject to customers detailed requests.

 Type of Switch:

  •Non tactile

  •graphics

  •Tactile with stainless steel domes

  •Tactile with poly domes on the circuit



Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, EL,LED backlingt,rubber keypad etc.



                                 products show



 Illuminated LED Membrane Switch Non Tactile For Electromagnetic Oven 0Illuminated LED Membrane Switch Non Tactile For Electromagnetic Oven 1



Illuminated LED Membrane Switch Non Tactile For Electromagnetic Oven 2



Illuminated LED Membrane Switch Non Tactile For Electromagnetic Oven 3

Our company have passed the ISO certification and relevant government authority certification we have manufactured membrane switch for many years and have a good reputation in this field .we belive that Honesty is the key to the success of business .Cooperating with us is just like to cooperate with Credibility for that We can sure that the products will be designed according to the customer`s requirements strictly and the material ,the craftsmanship t,the service will be the best.so what are you waiting for, let `s enjoy our cooperation together.
