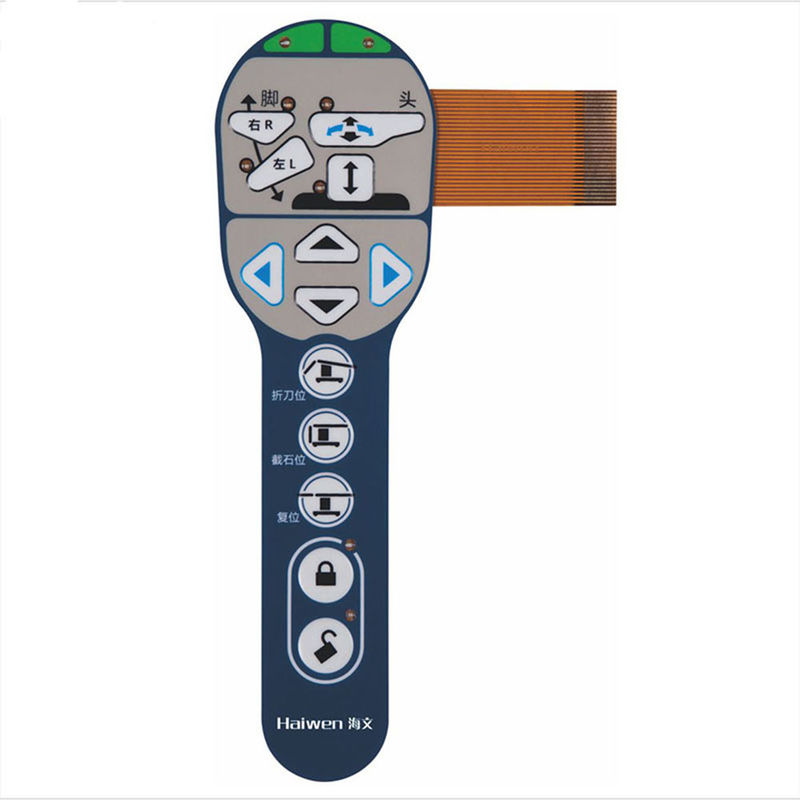

IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001:2008 / CE

Model Number: HW-170215002

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $1.00/pieces 10-99 pieces

Packaging Details: First put in a polybag per 50 pcs usually, then packed in a big carton.

Supply Ability: 100000 Piece/Pieces per Month keypad

Get Best Price
Highlight:

IP67 Illuminated Membrane Switch

,

IP67 Waterproof Membrane Switch

,

Metal Button Illuminated Membrane Switch

Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
F200PET
Material:
F200 PET/ 3M468
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
Finish:
Matte/Glossy
Adhesive:
3M467/3M468
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
LED:
YES/NO
Pin:
Need To Check The Circuit Diagram
Pitch:
0.5mm/1mm/1.27mm/2.54mm
Port:
Shenzhen
Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
F200PET
Material:
F200 PET/ 3M468
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
Finish:
Matte/Glossy
Adhesive:
3M467/3M468
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
LED:
YES/NO
Pin:
Need To Check The Circuit Diagram
Pitch:
0.5mm/1mm/1.27mm/2.54mm
Port:
Shenzhen
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 0
IP67 Waterproof FPC Membrane Switch Manufacturer

Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 1
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 2
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 3
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 4
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 5
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 6
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 7
Technical Paramenters
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 8
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation

± 0.15mm, clear code looks bad ≤ 0.1mm edges

Chromatic Deviation

± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 9
Electronic Communication
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 10
Electronic Measurement
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 11
Industrial Control
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 12
Medical Equipment
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 13
Automotive Industry
IP67 Waterproof Illuminated Membrane Switch Metal Button CE Certificate 14
