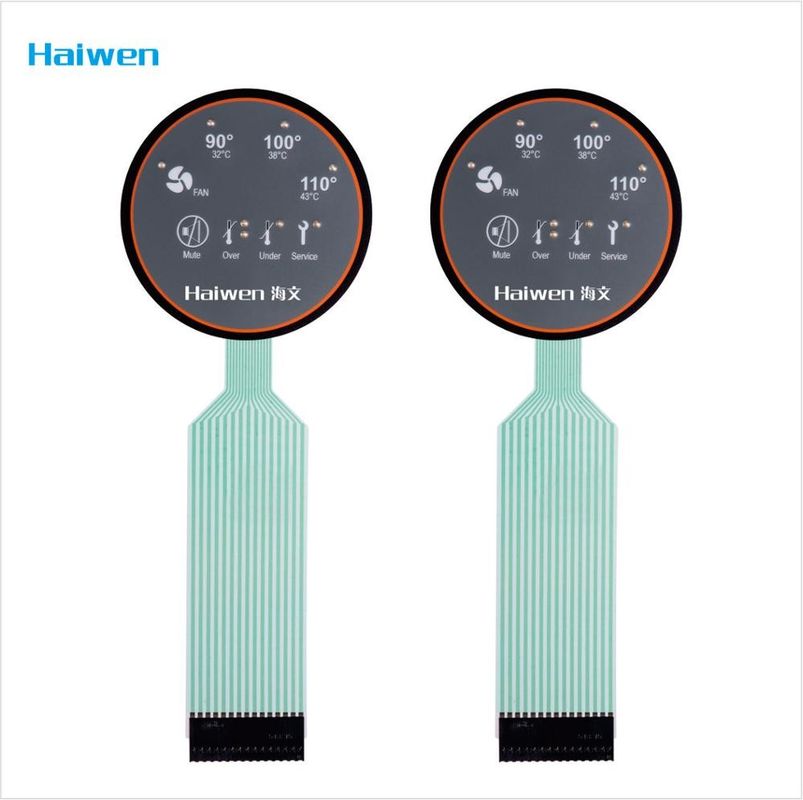

Flexi Cable PET Circuit Membrane Switch With Matte Embossed Button

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001

Model Number: HW-211103003

Payment & Shipping Terms

Price: $1.00 - $3.00/pieces

Packaging Details: According to the cutomer`s detailed requirements

Supply Ability: 150000 Piece/Pieces per Month

Get Best Price
Highlight:

Flexi Cable PET Circuit Membrane Switch

,

Flexi Cable PET Membrane Switch

,

Matte Embossed Button PET Membrane Switch

Type:
Membrane Switch
Application:
Home Appliance
Keypad Button Material:
F150PET
Printing:
Second Surface
Adhesive:
3M467/468
Product:
18 Years Experience
Port:
Shenzhen
Type:
Membrane Switch
Application:
Home Appliance
Keypad Button Material:
F150PET
Printing:
Second Surface
Adhesive:
3M467/468
Product:
18 Years Experience
Port:
Shenzhen
Flexi Cable PET Circuit Membrane Switch With Matte Embossed Button

PET Membrane Switch With Matte Embossed Button And Flexi Cable





    LEDs welded on the flexible circuit layer make into the membrane keypad. When several Everlight LEDs are assembled in the keypad,  the LEDs should using 0805 and the wiring of LED should be separated from lower circuit. Besides, the LED windows should be embossed. All of these details are making the construction stable. Using F200 matte PET makes the overlay looks graceful.  The LED keypad are widely used as industrial control keypad, because of good tactile buttons, powerful functions. The keypad can be customized based on customer’s design such as button icons, colors etc. The main characters are printed wiring, low resistance and function well. Item HW-000611 with strong function is able to weld with colorful LEDs, adopting waterproof circle structure and 3M9495LE. So keypads are suitable for high air humidity environment.





1.Environment Conditions
Item Value
Operating Temperature & Humidity  -20°C - +70°C,< 90 %RH
Storage Temperature & Humidity  -30°C - +70°C,< 90 %RH
ESD protection air +/-10KV, touching +/-5KV
Falling ball(1.1mm tempered glass) 50g(ball),1m
Static pressure(1.1mm tempered glass) 25KG
Surface hardness >7H
Transmittance >85%
Using durability (Pen Sliding test) 10 Million times


2. Electrical characteristics:
Item Value
Supply voltage 2.8V~5V
Current consumption Active Mode
Normal Mode
Sleep Mode
Power Supply Ripple 100mv P-P max
Supports a maximum resolution 2560X1408
Interface I2C,USB
response time 20ms
Power Supply rise time 8ms Max
Linearity < 1.5%

3.Touch function:
Item Value
Drag, circle, slide, soft keys OK
Multi-touch Support up to 10 fingers
Gesture recognition Enlarge, reduce, Rotate
keys analyzed additionally Sliders, wheels, fierce action, long press



                                                    products show











Flexi Cable PET Circuit Membrane Switch With Matte Embossed Button 0Flexi Cable PET Circuit Membrane Switch With Matte Embossed Button 1Flexi Cable PET Circuit Membrane Switch With Matte Embossed Button 2
