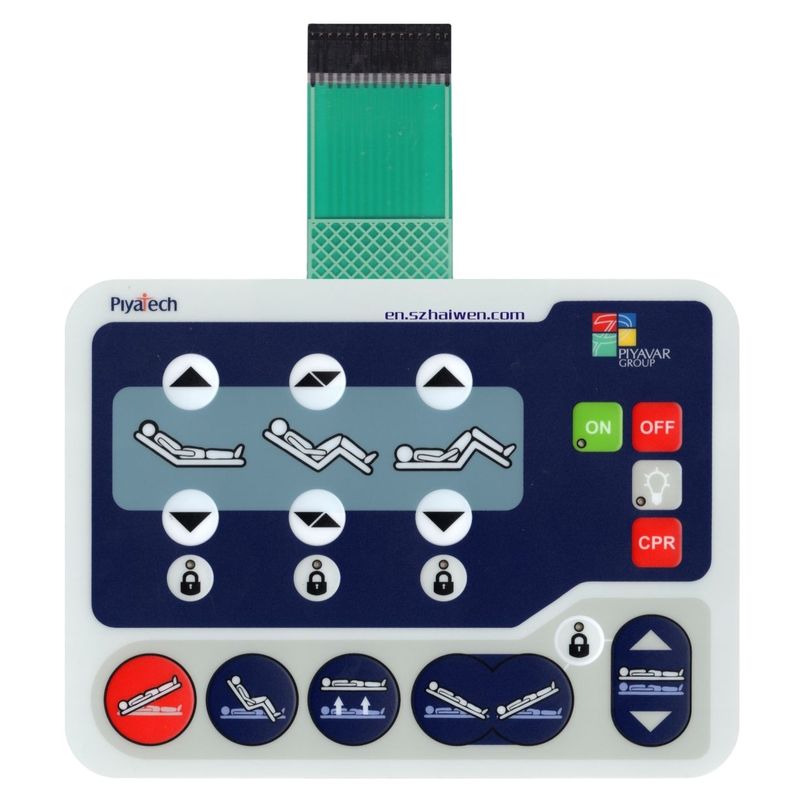

Keypad Panel Led Membrane Switch

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001

Model Number: HW-2022052501

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $1.00/pieces 10-999 pieces

Packaging Details: According to customer requirement, the use of plastic bags and carton packaging

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Highlight:

Keypad Panel Led Membrane Switch

,

Custom Led Membrane Switch

,

Keypad Panel PET Circuit Membrane Switch

Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
F150 PET
Product:
Over 20 Years Experience
Overlay Material:
PET, PC, Silicone, Acrylic
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
Embossed Type:
Pillow Emboss, Dome Emboss, Frame Emboss
Printing:
Screen Printing, Semi-Auto Matic Printing, Automatic Printing
Finish:
Matte/Glossy
Adhesive:
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, Nitto
Window:
Transparent, Translucent, Colors Transparent Window
Connector Tail:
ZIF, Female Connector, Male Connector, Solder Pins
Port:
Shenzhen
Type:
Membrane Switch
Application:
Telecommunication Equipment
Keypad Button Material:
F150 PET
Product:
Over 20 Years Experience
Overlay Material:
PET, PC, Silicone, Acrylic
Button:
Embossed/Flat/Metal/Silicone/Rubber/Gum
Embossed Type:
Pillow Emboss, Dome Emboss, Frame Emboss
Printing:
Screen Printing, Semi-Auto Matic Printing, Automatic Printing
Finish:
Matte/Glossy
Adhesive:
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, Nitto
Window:
Transparent, Translucent, Colors Transparent Window
Connector Tail:
ZIF, Female Connector, Male Connector, Solder Pins
Port:
Shenzhen
Keypad Panel Led Membrane Switch
Keypad Panel Led Membrane Switch 0
Custom Led Membrane Switch With Led Backlight Membrane Switch Keypad Panel

Product Description
Overlay Material
PET, PC, EBG180, EGA180, Glass, Acrylic
Artwork Format
CorelDraw, AI, CAD, CDR, PDF
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes

Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch

Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FFC, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001,RoHS,CE,SGS
Keypad Panel Led Membrane Switch 1
Keypad Panel Led Membrane Switch 2
Keypad Panel Led Membrane Switch 3
Keypad Panel Led Membrane Switch 4
Keypad Panel Led Membrane Switch 5
Keypad Panel Led Membrane Switch 6
Keypad Panel Led Membrane Switch 7
Technical Paramenters
Keypad Panel Led Membrane Switch 8
Electrical Properties



Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties



Reliability, Service life

> 1 million times





























Closed Displacement

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)

Health Standard For Power

 280g Power

Silver Migration

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

Silver Online No Oxidation, No Impurities



Silver Width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width

Pin Spacing Standard

1.00mm

Lead Aanti-Curvature

10mm steel rod line pressure roller 80 constantly.

Environmental Performance



Operating Temperature

 -40 ℃ ~ +80 ℃

Storage Temperature

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

Atmospheric Pressure

86 ~ 106KPa

Print Index



Print Size Deviation

± 0.15mm, clear code looks bad ≤ 0.1mm edges

Chromatic Deviation

± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application
Keypad Panel Led Membrane Switch 9
Electronic Communication
Keypad Panel Led Membrane Switch 10
Electronic Measurement
Keypad Panel Led Membrane Switch 11
Industrial Control
Keypad Panel Led Membrane Switch 12
Medical Equipment
Keypad Panel Led Membrane Switch 13
Automotive Industry
Keypad Panel Led Membrane Switch 14
Household
