3 button membrane switch keyboard with lcd window

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001:2008 / SGS

Model Number: HW-81011004

Payment & Shipping Terms

Price: $1.00 - $5.00/pieces

Packaging Details: First put in a polybag per 50 pcs usually, then packed in a big carton.

Supply Ability: 100000 Piece/Pieces per Month keypad

Get Best Price
Highlight:
Application:
Telecommunication Equipment
Keypad Button Material:
F150PET
Material:
F150 PET/ FPC/ 3M468
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
Waterproof Grage:
IP67
Port:
Shenzhen
Application:
Telecommunication Equipment
Keypad Button Material:
F150PET
Material:
F150 PET/ FPC/ 3M468
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
Waterproof Grage:
IP67
Port:
Shenzhen
3 button membrane switch keyboard with lcd window

Description

Metal domes added to the membrane keyboard provide the upper circuit layer. That contributes the keys to visual, audible, and tactile feedback. The sKeyboard can performance well in high temperature environment. The product are mainly used as control keyboard for industrial electric appliances. Also, keyboard of Haiwen can be customized based on customer's design such as button icons, colors etc. Transparent window is manufactured with UV ink. Selecting Autotype F150 matte PET to screen print the overlay appears elegant and colorful. The circuits are made of Acheson ED-820B silver paste, so that it can be low resistance and function well. The connector adopt Dupont female and rear adhesive is 3M 468.
Product Parameter
1. Electrical Properties:
1,  operating voltage:
≤ 50VDC
2,  working current:
≤ 100mA
3,  Contact resistance:
0.5 ~ 5Ω
4,  Insulation resistance:
≥ 100MΩ (100VDC)
5, substrate voltage:
2kDVC
6, spring time:
≤ 6ms
7, loop resistance:
60Ω
8, insulation ink voltage:
100VDC
2. Mechanical Properties :
1, reliability, service life:
> 1 million times
2, closed displacement:
0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm
3, health standard for power:
300g Power
4, Silver migration:
In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
5, Silver online
no oxidation, no impurities
6, Silver width
 ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4
width
7, pin spacing standard
1.00mm
8, lead anti-curvature, with d
10mm steel rod line pressure roller 80 constantly.
3. environmental performance :
1, operating temperature:
-40 ℃ ~ +80 ℃
2, storage temperature:
-40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3, atmospheric pressure:
86 ~ 106kDa

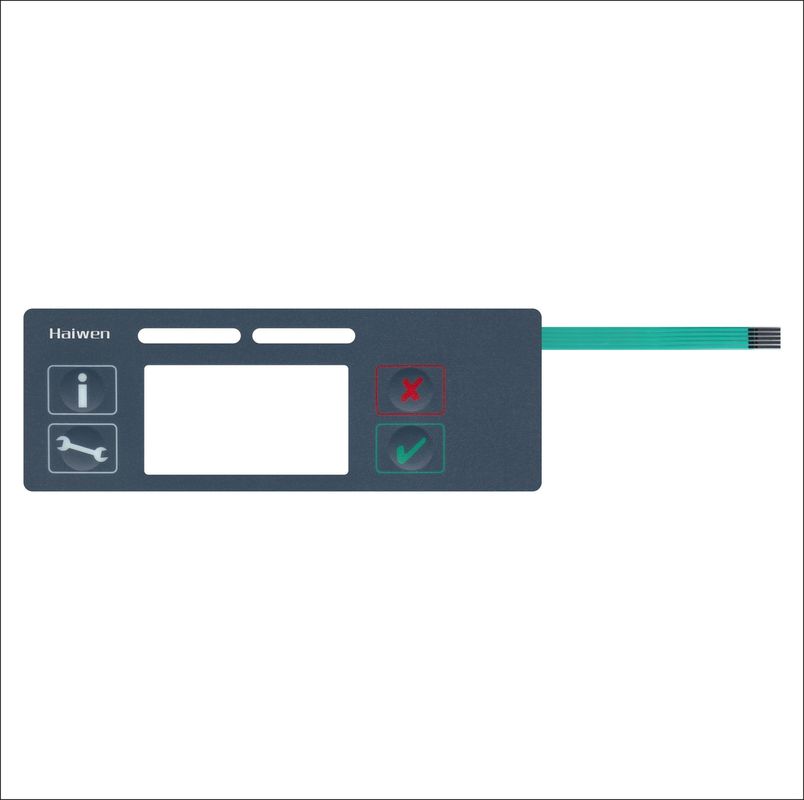

3 button membrane switch keyboard with lcd window 0
Detailed Images
3 button membrane switch keyboard with lcd window 1
3 button membrane switch keyboard with lcd window 2
3 button membrane switch keyboard with lcd window 3
3 button membrane switch keyboard with lcd window 4
3 button membrane switch keyboard with lcd window 5
3 button membrane switch keyboard with lcd window 6
3 button membrane switch keyboard with lcd window 7
3 button membrane switch keyboard with lcd window 8
3 button membrane switch keyboard with lcd window 9
