Electric Matrix Metal Domes Membrane Keypad Switch With Clear LCD Window

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001:2008

Model Number: HW-201006003

Payment & Shipping Terms

Price: $2.00 - $5.00/pieces

Packaging Details: First put in a polybag per 50 pcs usually, then packed in a big carton.

Supply Ability: 100000 Piece/Pieces per Month membrane switch with 3M468 adhesive

Get Best Price
Highlight:
Application:
Home Appliance
Keypad Button Material:
F200PET
Material:
F200 PET/ Silver Paste/ 3M468
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
Port:
Shenzhen
Application:
Home Appliance
Keypad Button Material:
F200PET
Material:
F200 PET/ Silver Paste/ 3M468
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
Port:
Shenzhen

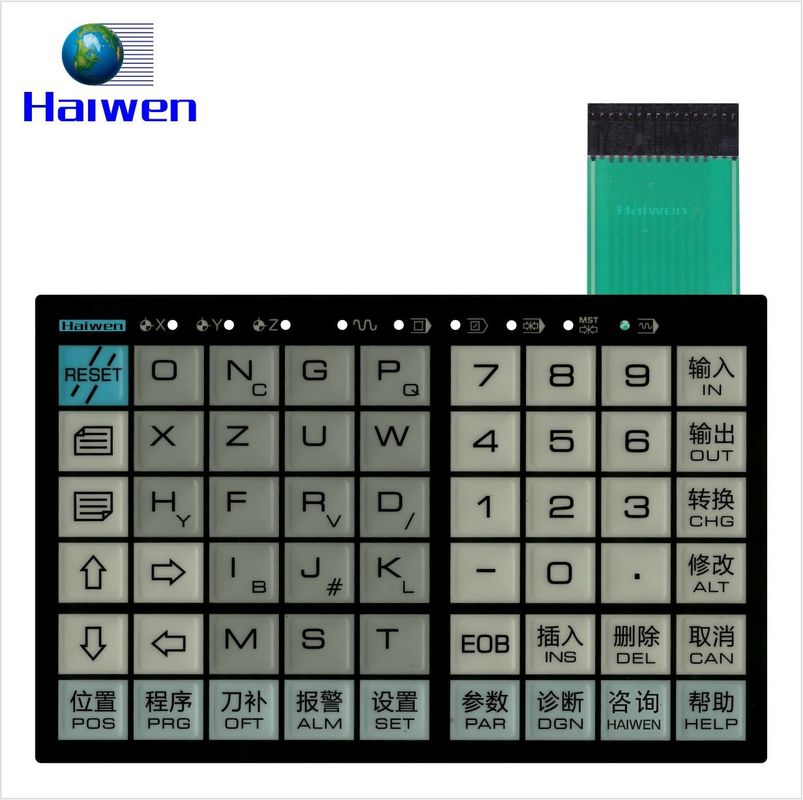

Electric Matrix Metal Domes Membrane Keypad Switch With Clear LCD Window



Electric Matrix Metal Domes Membrane Keypad Switch With Clear LCD Window 0

       Metal domes added to the membrane switch provide the upper circuit layer. That contributes the keys to visual, audible, and tactile feedback. The switch can performance well in high temperature environment. The product are mainly used as control keypad for movable electric appliances. Also, keypad of Haiwen can be customized based on customer’s design such as button icons, colors etc. Transparent window is manufactured with UV ink. Selecting Autotype F200 matte PET to screen print the overlay appears elegant and colorful. The circuits are made of Acheson ED-820B silver paste, so that it can be low resistance and function well. The rear adhesive is 3M 468.



     Membrane switch flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.

     Membrane switch has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.



1.  Electrical Properties:



1, operating voltage:  ≤ 50VDC
2, working current:  ≤ 100mA
3 Contact resistance:  0.5 ~ 5Ω
4 Insulation resistance:  ≥ 100MΩ (100VDC)
5, substrate voltage:  2kDVC
6, spring time:  ≤ 6ms
7, loop resistance:  60Ω
8, insulation ink voltage:  100VDC



 2.  Mechanical Properties :



1, reliability, service life: > 1 million times
2, closed displacement:  0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm
3, health standard for power:  280g Power
4, Silver migration:  In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
5, Silver online no oxidation, no impurities
6, Silver width

 ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3,

the line gap of <1 / 4 width

7, pin spacing standard  1.00mm
8, lead anti-curvature, with d  10mm steel rod line pressure roller 80 constantly.



 3. environmental performance :



1, operating temperature:  -40 ℃ ~ +80 ℃
2, storage temperature:  -40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3, atmospheric pressure:  86 ~ 106kDa
