Product Details
Place of Origin: Guangdong, China
Brand Name: Haiwen
Certification: ISO9001:2008
Model Number: HW-1126010
Payment & Shipping Terms
Price: $1.00 - $2.00/pieces
Packaging Details: First put in a polybag per 10 pcs usually, then packed in a big carton.
Supply Ability: 100000 Piece/Pieces per Month LED Membrane Switch
Type: |
Membrane Switch |
Application: |
Medical Equipment |
Keypad Button Material: |
PET |
Material: |
F200 PET/ Silver Paste/ 3M9495LE |
Service Life: |
> 1 Million Times |
Waterproof Grade: |
IP67 |
Port: |
Shenzhen |
Type: |
Membrane Switch |
Application: |
Medical Equipment |
Keypad Button Material: |
PET |
Material: |
F200 PET/ Silver Paste/ 3M9495LE |
Service Life: |
> 1 Million Times |
Waterproof Grade: |
IP67 |
Port: |
Shenzhen |

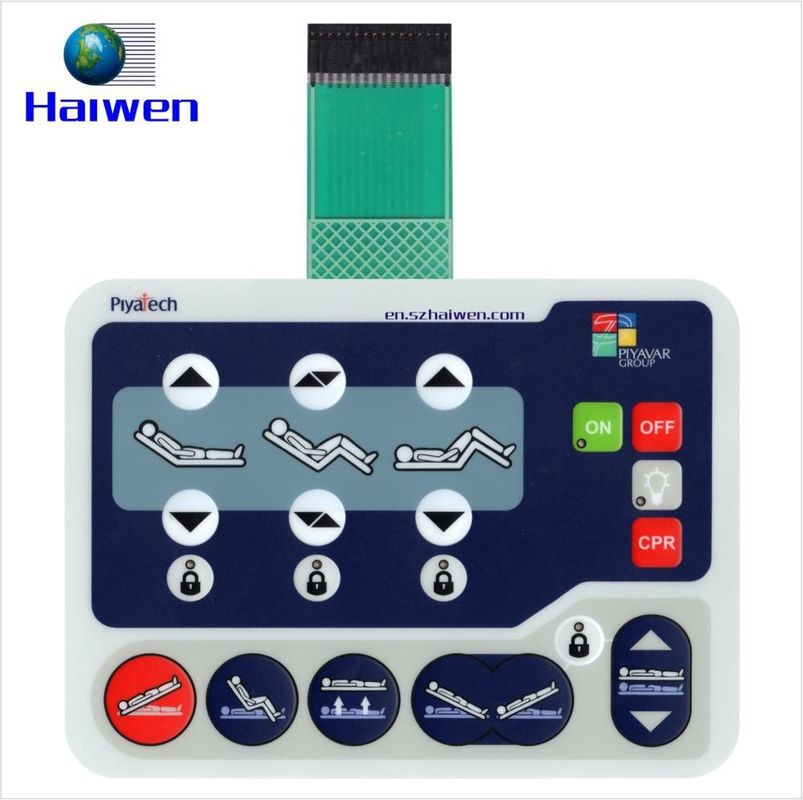

Membrane switch flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.
Membrane switch has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.
The switch adopts the silver flexible circuit layer welded 28 LEDs. The wiring is high precision, low resistance and long lifetime. The closest pitch of pinout can reach 1.0mm. The product are mainly used as industrial control keypad. Because it has good tactile and function well. Selecting Autotype F200 matte PET screen print the overlay elegant and colorful. Also, keypad can be customized based on customer’s design such as button icons, colors etc. Besides, adopting waterproof circle structure and 3M300Lse adhesive, the keypads are suitable for high air humidity environment.
| The main technical parameters of Haiwen membrane switch | |
| (1) Electrical Properties | |
| 1, operating voltage: | ≤ 50VDC |
| 2, working current: | ≤ 100mA |
| 3 Contact resistance: | 0.5 ~ 5Ω |
| 4 Insulation resistance: | ≥ 100MΩ (100VDC) |
| 5, substrate voltage: | 2kDVC |
| 6, spring time: | ≤ 6ms |
| 7, loop resistance: | 30Ω |
| 8, insulation ink voltage: | 100VDC |
| (2) Mechanical Properties | |
| 1, reliability, service life: | > 1 million times |
| 2, closed displacement: | 0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm |
| 3, health standard for power: | 280g Power |
| 4, Silver migration: | In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC |
| 5, Silver online no oxidation, no impurities | |
| 6, Silver width | ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width |
| 7, pin spacing standard | 2.54mm |
| 8, lead anti-curvature, with d | 10mm steel rod line pressure roller 80 constantly. |
| (3) environmental performance | |
| 1, operating temperature: | -40 ℃ ~ +80 ℃ |
| 2, storage temperature: | -40 ℃ ~ +85 ℃ temperature of 95% ± 5% |
| 3, atmospheric pressure: | 86 ~ 106kDa |
| (4) print index | |
| 1, print size deviation | ± 0.15mm, clear code looks bad ≤ 0.1mm edges |
| 2, chromatic deviation | ± 0.11mm/100mm, insulated cover all the Silver Line Ink |
| 3, no ink dispersion, writing non-defective | |
| 4, chromatic aberration is not more than two | |
| 5, may have creases, paint stripping | |
| 6, transparent windows transparent clean, uniform color, not a scratch, and impurity | |
