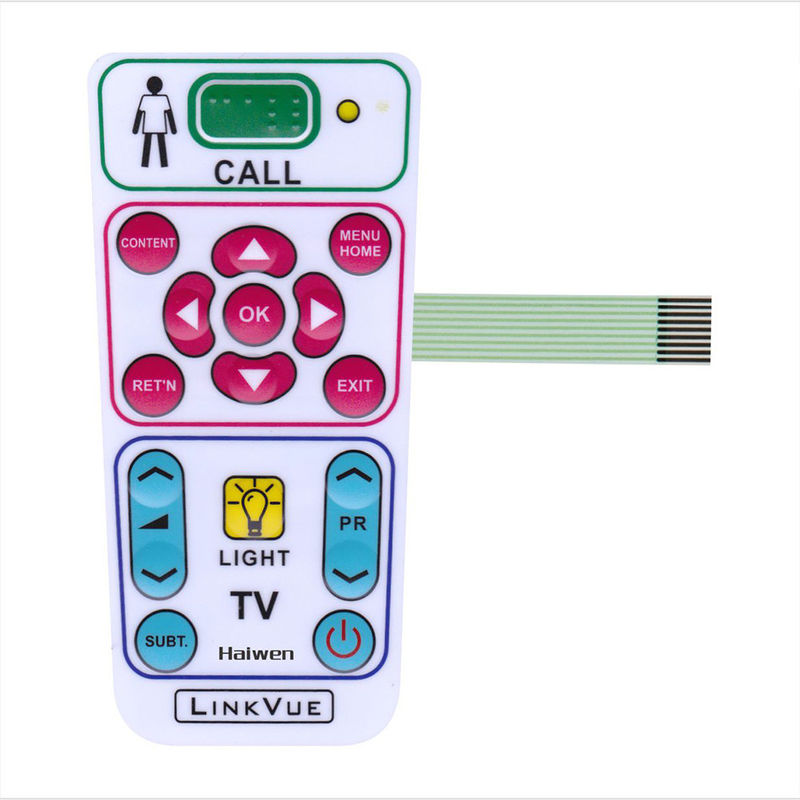

Metal Dome Push Button Led Tactile Waterproof Membrane Switch

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001:2008

Model Number: HW-025631

Payment & Shipping Terms

Price: $0.20 - $1.00/pieces

Packaging Details: Packed with extra carton box, which make sure the goods safety in transportation.

Supply Ability: 500000 Piece/Pieces per Month FPC membrane switch/membrane keypad/keyboard

Get Best Price
Highlight:
Type:
Membrane Keyboard
Application:
Computer Keyboard
Keypad Button Material:
PET ,PC , Silicone
Color:
Pantone Or RAL
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
FPC Membrane Switch:
PC Or PET Material
LED:
Embedded
Design:
Custom Size,color,button Shape,cable Length
Back Adhesive:
3M
Circuit:
Flexible FPC
Button:
Embossed Tactile,flat Non-tactile
Port:
Shenzhen
Type:
Membrane Keyboard
Application:
Computer Keyboard
Keypad Button Material:
PET ,PC , Silicone
Color:
Pantone Or RAL
Service Life:
> 1 Million Times
Operating Temperature:
-40 ℃ ~ +80 ℃
FPC Membrane Switch:
PC Or PET Material
LED:
Embedded
Design:
Custom Size,color,button Shape,cable Length
Back Adhesive:
3M
Circuit:
Flexible FPC
Button:
Embossed Tactile,flat Non-tactile
Port:
Shenzhen
Metal Dome Push Button Led Tactile Waterproof Membrane Switch



Metal Dome Push Button Led Tactile Waterproof Membrane Switch 0

       Metal domes added to the membrane switch provide the upper circuit layer. That contributes the keys to visual, audible, and tactile feedback. The switch can performance well in high temperature environment. The product are mainly used as control keypad for movable electric appliances. Also, keypad of Haiwen can be customized based on customer’s design such as button icons, colors etc. Transparent window is manufactured with UV ink. Selecting Autotype F150 matte PET to screen print the overlay appears elegant and colorful. The circuits are made of Acheson ED-820B silver paste, so that it can be low resistance and function well. The rear adhesive is 3M 468.



     Membrane switch flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.

     Membrane switch has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.



1.  Electrical Properties:



1, operating voltage:  ≤ 50VDC
2, working current:  ≤ 100mA
3 Contact resistance:  0.5 ~ 5Ω
4 Insulation resistance:  ≥ 100MΩ (100VDC)
5, substrate voltage:  2kDVC
6, spring time:  ≤ 6ms
7, loop resistance:  60Ω
8, insulation ink voltage:  100VDC



 2.  Mechanical Properties :



1, reliability, service life: > 1 million times
2, closed displacement:  0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm
3, health standard for power:  280g Power
4, Silver migration:  In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
5, Silver online no oxidation, no impurities
6, Silver width

 ≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3,

the line gap of <1 / 4 width

7, pin spacing standard  1.00mm
8, lead anti-curvature, with d  10mm steel rod line pressure roller 80 constantly.



 3. environmental performance :



1, operating temperature:  -40 ℃ ~ +80 ℃
2, storage temperature:  -40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3, atmospheric pressure:  86 ~ 106kDa

Metal Dome Push Button Led Tactile Waterproof Membrane Switch 1

Metal Dome Push Button Led Tactile Waterproof Membrane Switch 2Metal Dome Push Button Led Tactile Waterproof Membrane Switch 3Metal Dome Push Button Led Tactile Waterproof Membrane Switch 4Metal Dome Push Button Led Tactile Waterproof Membrane Switch 5





Metal Dome Push Button Led Tactile Waterproof Membrane Switch 6

Metal Dome Push Button Led Tactile Waterproof Membrane Switch 7

Metal Dome Push Button Led Tactile Waterproof Membrane Switch 8
