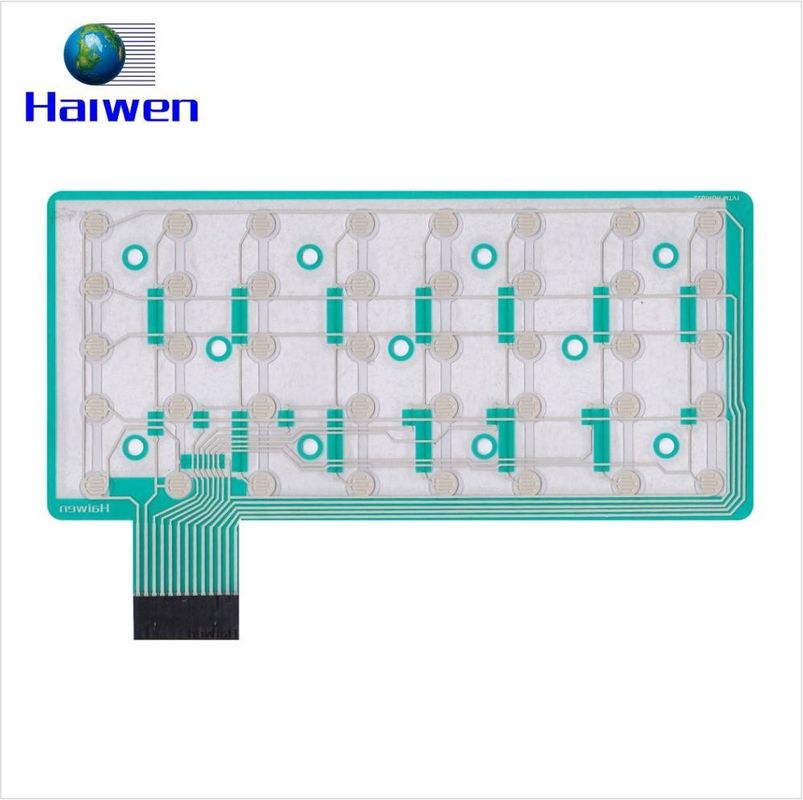

China Supply Flat Durable Inexpensive Assemble PCB Membrane switch

Product Details

Place of Origin: Guangdong, China

Brand Name: Haiwen

Certification: ISO9001:2015

Model Number: HW-81009003

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $1.00/pieces 10-499 pieces

Packaging Details: First put in a polybag per 50 pcs usually, then packed in a big carton.

Supply Ability: 100000 Piece/Pieces per Month LED Membrane Switch

Get Best Price
Highlight:
Type:
Membrane Switch
Application:
Medical Equipment
Keypad Button Material:
PET
Material:
PET/Adhesive
Service Life:
> 1 Million Times
Waterproof Grade:
IP67
Color:
Pantone/RAL
Overlay:
PET/PC/PCB
Circuit:
Printed Silver Conductive Inks/FPC
Adhesive:
3M
Sample:
5pcs
Surface:
Glossy/Matte
Port:
Shenzhen
Type:
Membrane Switch
Application:
Medical Equipment
Keypad Button Material:
PET
Material:
PET/Adhesive
Service Life:
> 1 Million Times
Waterproof Grade:
IP67
Color:
Pantone/RAL
Overlay:
PET/PC/PCB
Circuit:
Printed Silver Conductive Inks/FPC
Adhesive:
3M
Sample:
5pcs
Surface:
Glossy/Matte
Port:
Shenzhen
China Supply Flat Durable Inexpensive Assemble PCB Membrane switch
China Supply Flat Durable Inexpensive Assemble PCB Membrane switch 0
Product Description
Overlay Material
PET, PC
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes
Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001、RoHS、CE、SGS
China Supply Flat Durable Inexpensive Assemble PCB Membrane switch 1
China Supply Flat Durable Inexpensive Assemble PCB Membrane switch 2
Technical Paramenters
China Supply Flat Durable Inexpensive Assemble PCB Membrane switch 3
Electrical Properties
Operating Voltage
≤ 50VDC
Substrate Voltage
2kDVC
Working Current
≤ 100mA
Spring Time
≤ 6ms
Contact Resistance
0.5 ~ 5Ω
Loop Resistance
 60Ω
Insulation Resistance
≥ 100MΩ (100VDC)
Insulation Ink Voltage
100VDC
Mechanical Properties
Reliability, Service life
> 1 million times
Closed Displacement
0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)
Health Standard For Power
 280g Power
Silver Migration
